Firewood processor

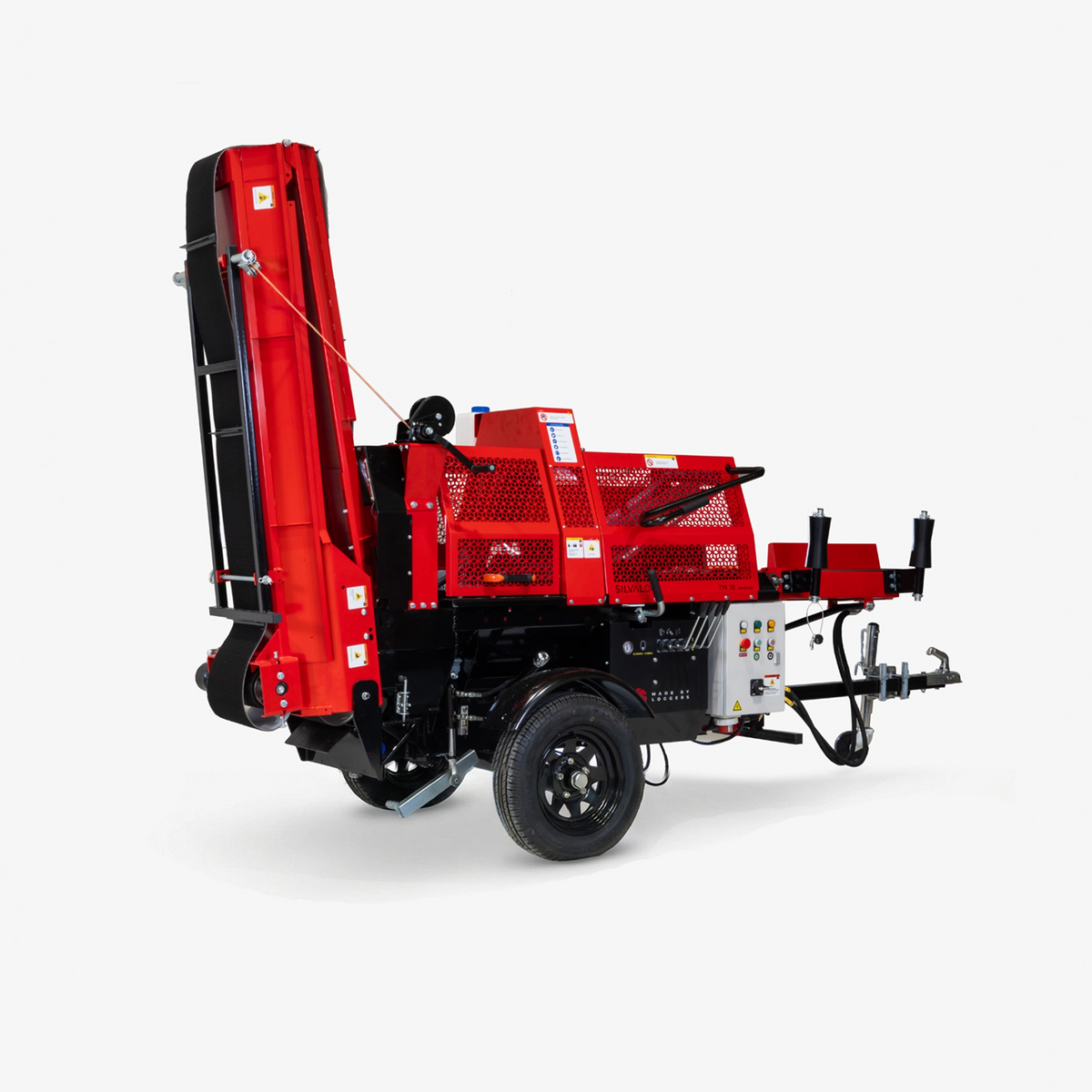

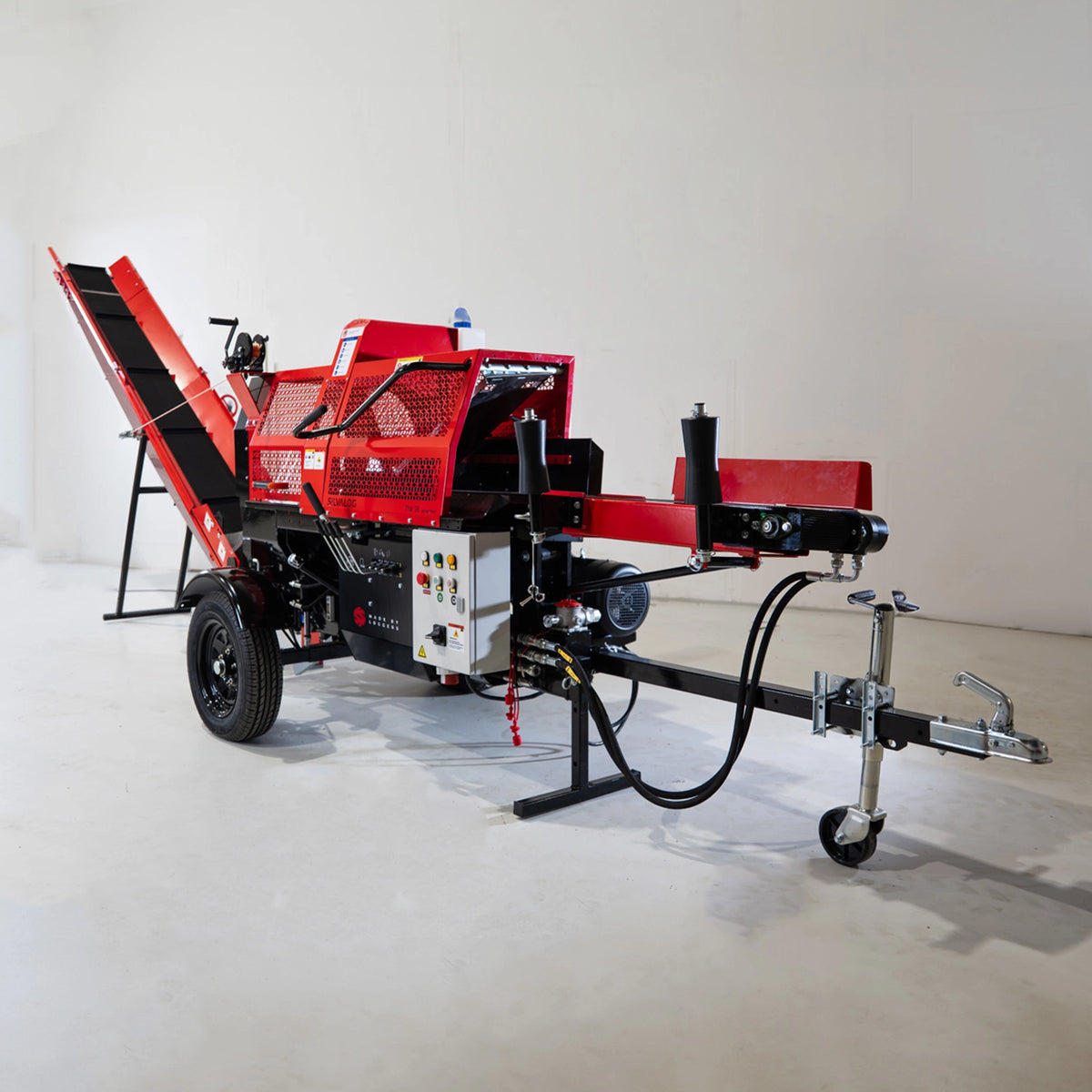

SILVALOG TYN38 Advanced

From 8 024 €excl. VAT

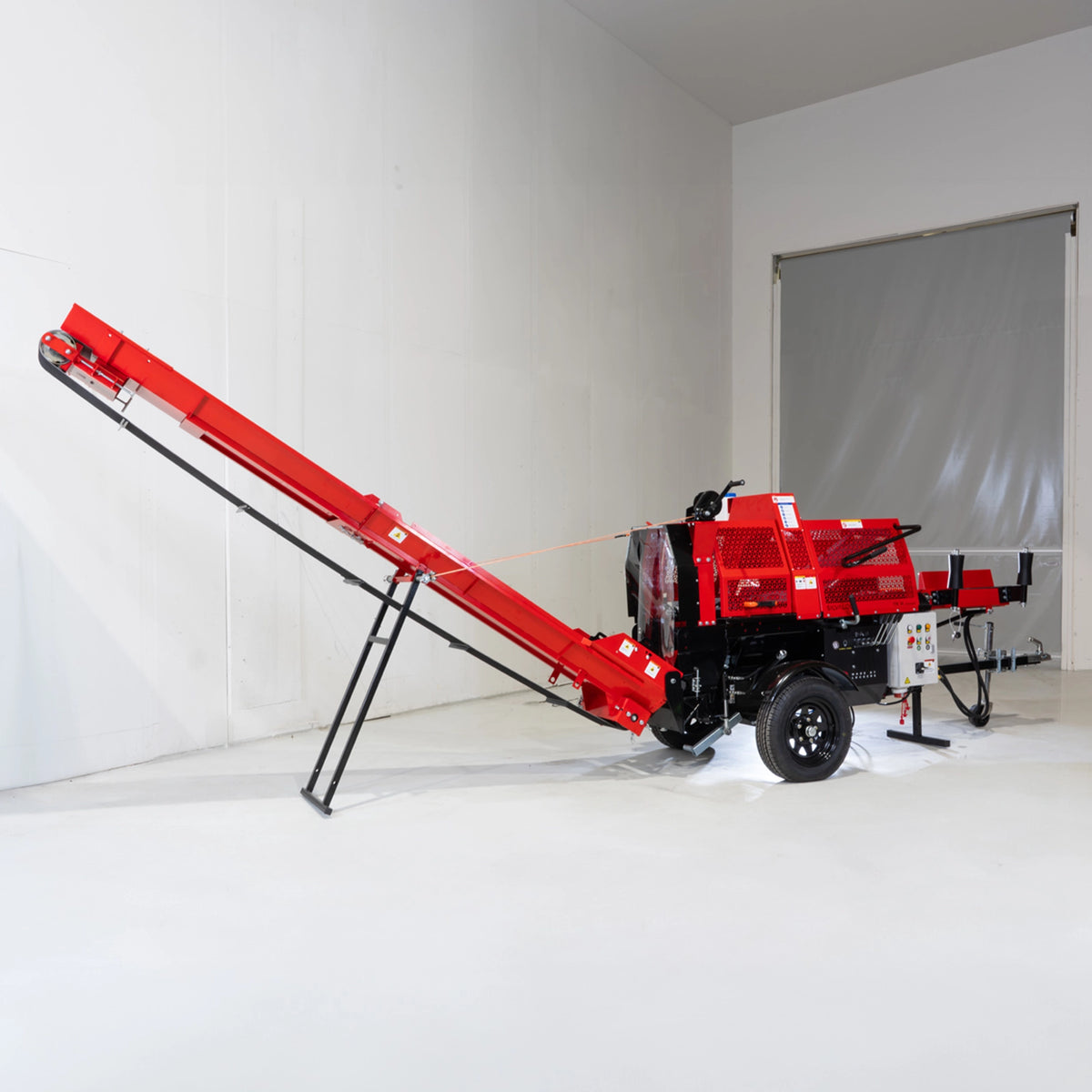

The SILVALOG TYN38 Advanced is a powerful, dependable firewood processor for fast production with clear lever control. It manages the complete workflow from log infeed and cutting to automatic splitting.

Powerful and efficient performance
Easy and precise control
Built for demanding conditions
Easy maintenance
Fast and controlled workflow
Designed for demanding daily use
Local dealer support

Find a dealer Request a quote

BUILT FOR THE WORK AHEAD

Designed around the operator

A closer look at the practical engineering, workflow and details behind the machine.

Key features

7 to 12-tonnes splitting force
Approx. 6-second cycle time

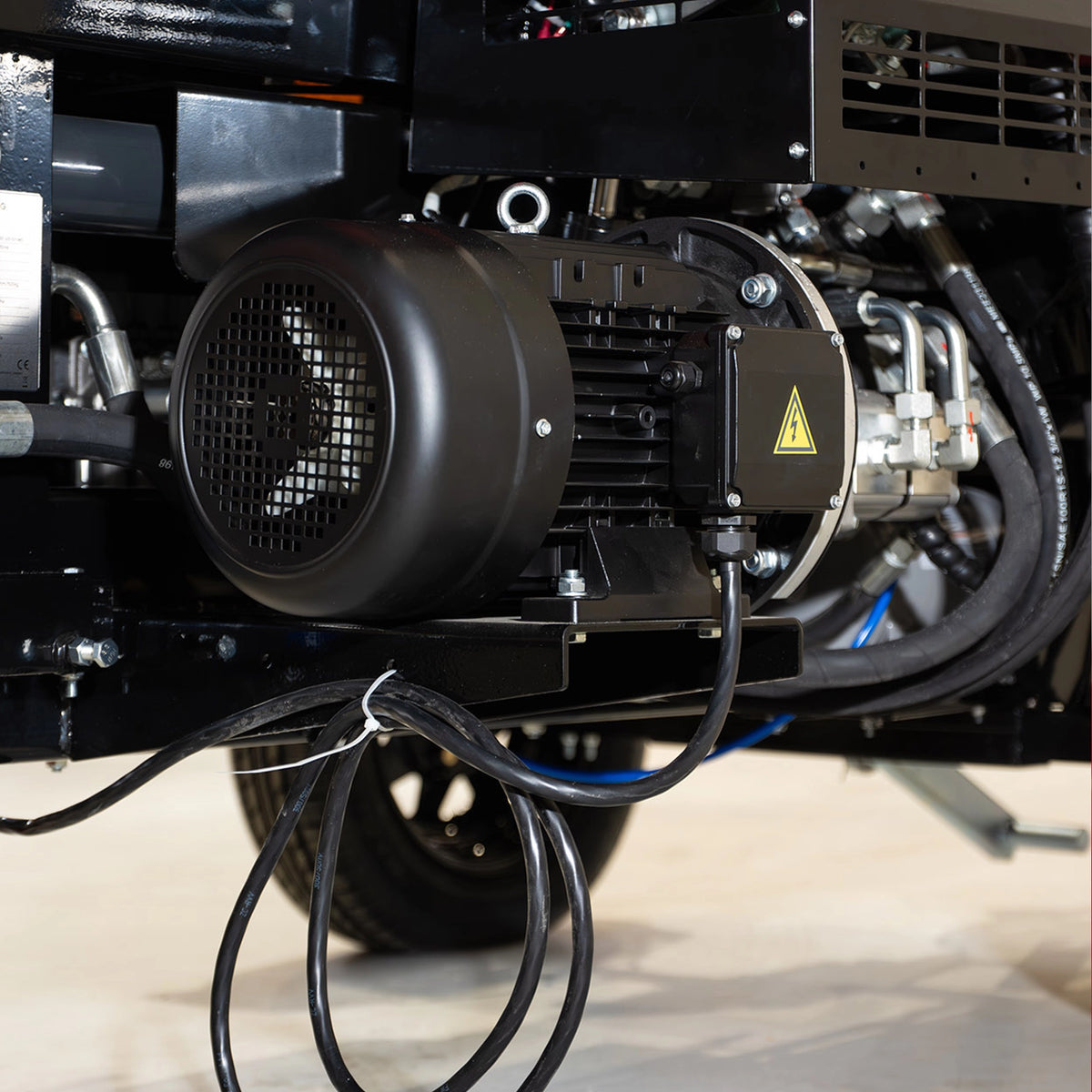

7.5 kW electric motor or Vanguard petrol engine
Hydraulically adjustable splitting knife
Automatic splitting
Swivelling discharge conveyor and full-length infeed belt
Closed hydraulic tank for stable operation

A productive choice for farms, contractors and professional firewood businesses.

Highlights

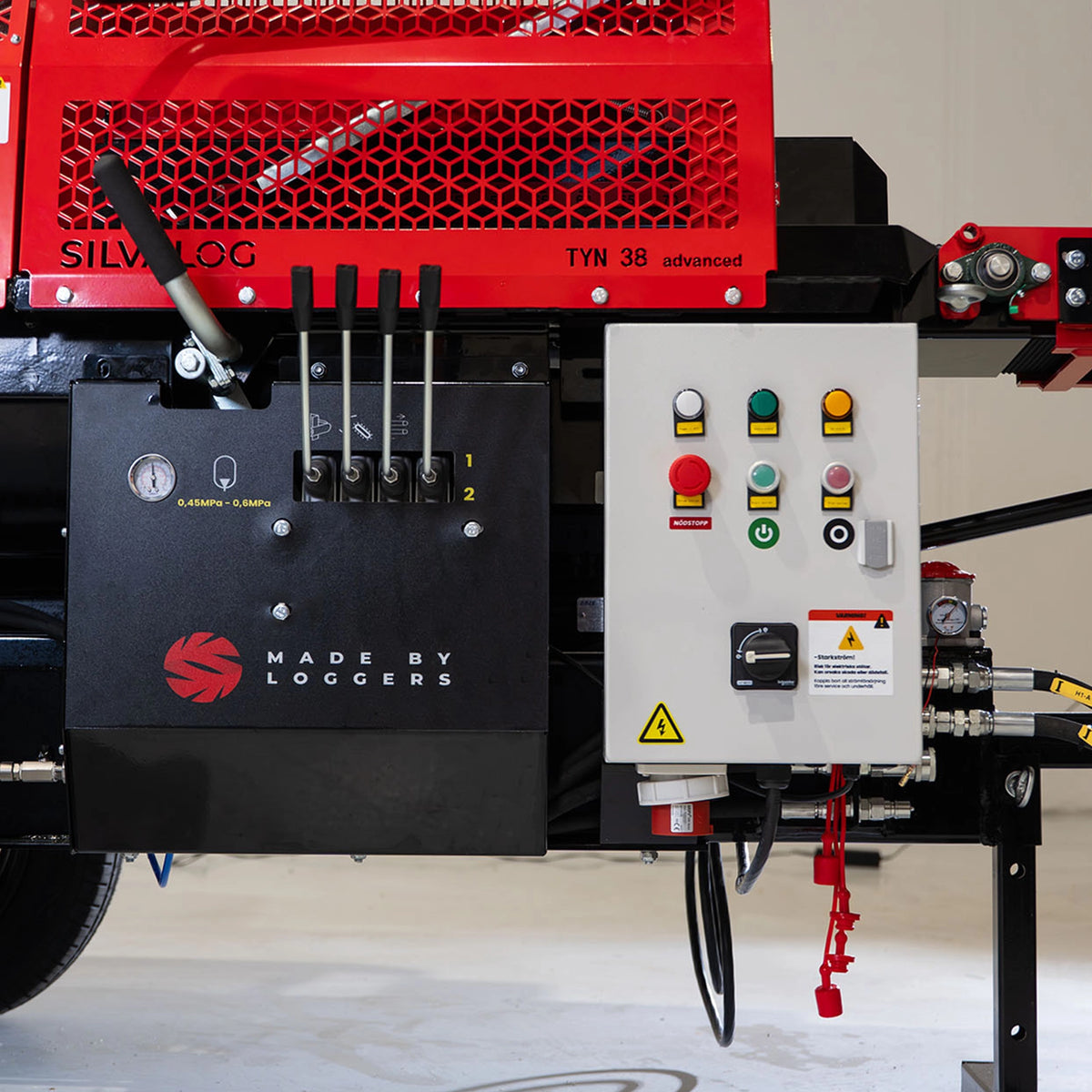

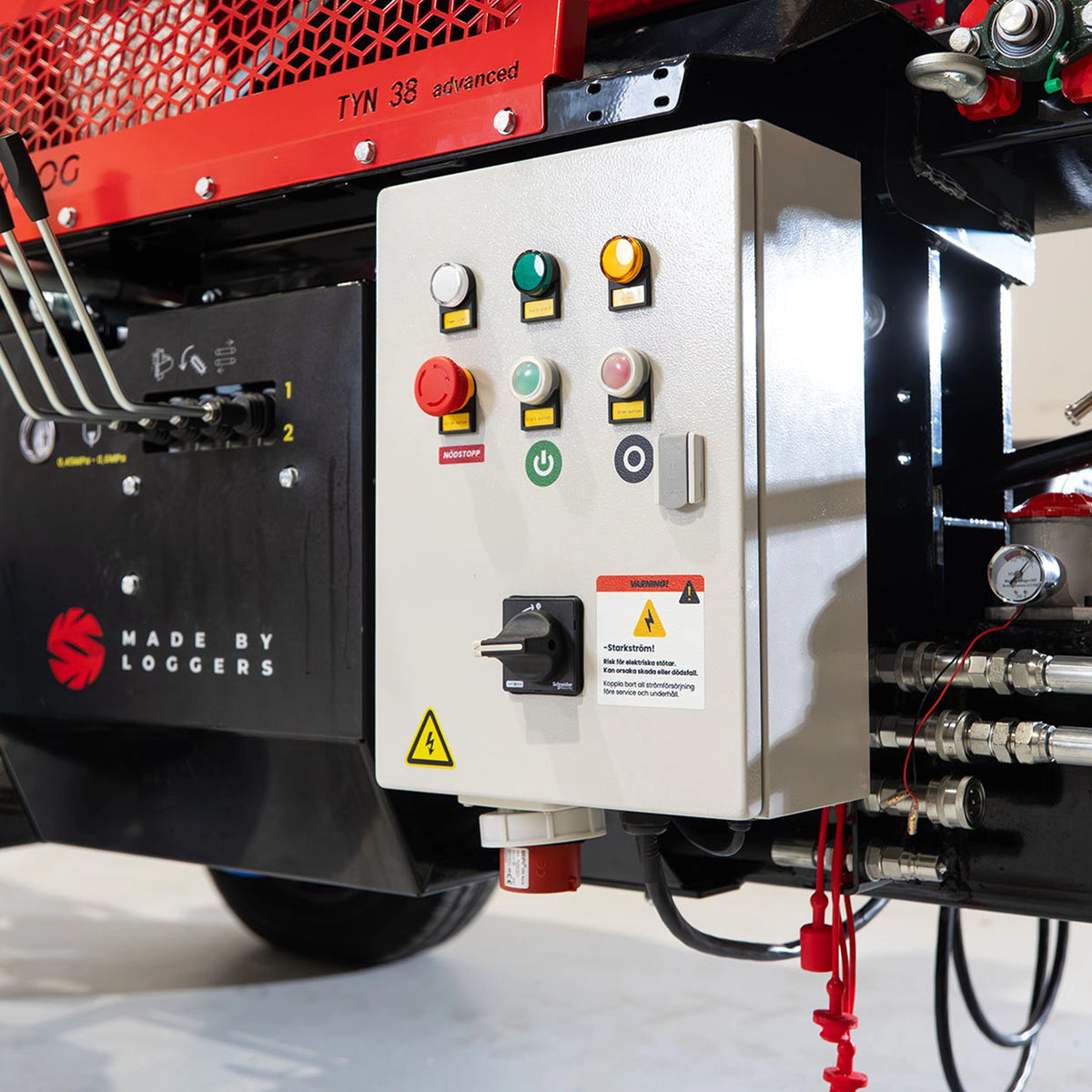

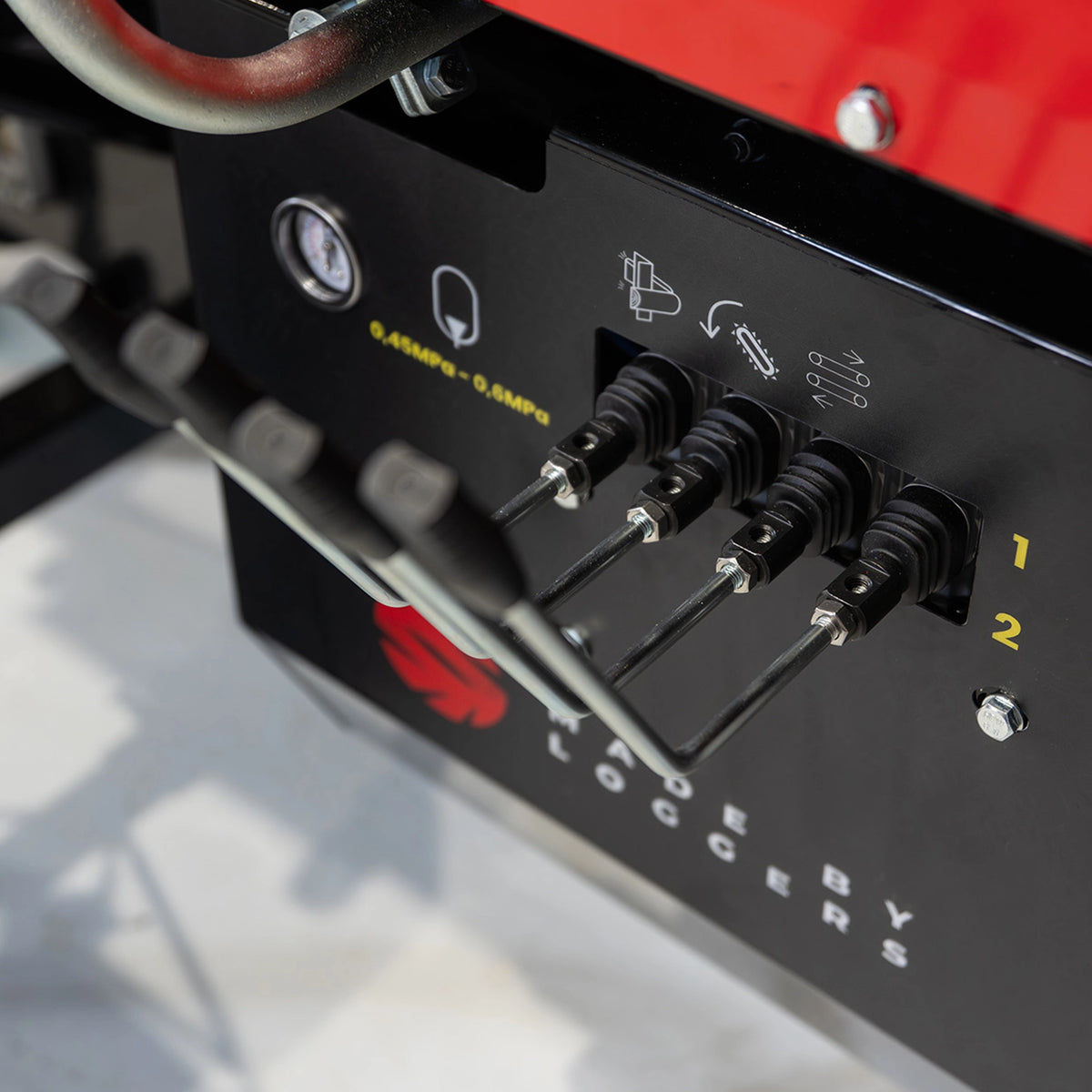

INTUITIVE CONTROLS

The TYN38 Advanced features a clear, well-organised control layout that puts every key function within easy reach. Smooth operation and precise adjustment provide confident control throughout the entire processing cycle.

FAST, POWERFUL SPLITTING

Choose between 7-tonne and 12-tonne splitting force to match your production needs. A fast cycle time keeps the workflow moving and delivers efficient, consistent firewood processing.

ACCESSORY READY

Configure the TYN38 Advanced for your workflow with the LL500 Log Lifter or LD500 Log Deck. Both accessories provide smoother log handling, reduce manual lifting and help maintain efficient, continuous production.

Production capacity — Up to 5–8 m³/h
Cycle time — Approx. 6 seconds
Guide bar — 18 inches
Standard splitting knife — 4-way
Maximum splitting diameter — 38 cm
Maximum splitting length — 56 cm
Splitting force — 7 to 12-tonnes
Discharge conveyor — 320 × 25 cm
Infeed conveyor — 190 × 19 cm
Overall dimensions — 360 × 140 × 230 cm (conveyor raised)
Engine options — Vanguard E-Strat 14 hp petrol engine or 7.5 kW electric motor
Electrical connection — Adapted for 16 A
Machine weight — 750 kg
Hydraulic oil — ISO VG 32 or ISO VG 46
Road transport — Maximum 25 km/h
Engine oil — 15W-40, 10W-30 or SAE 30 mineral oil
Chain lubrication — Separate oil tank
